4×4 LOW & HIGH RANGE
2022 MERCEDES-BENZ 144" HIGH ROOF
VANNON "PARKER" BUILD
🛡️ FULL SERVICE RECORDS

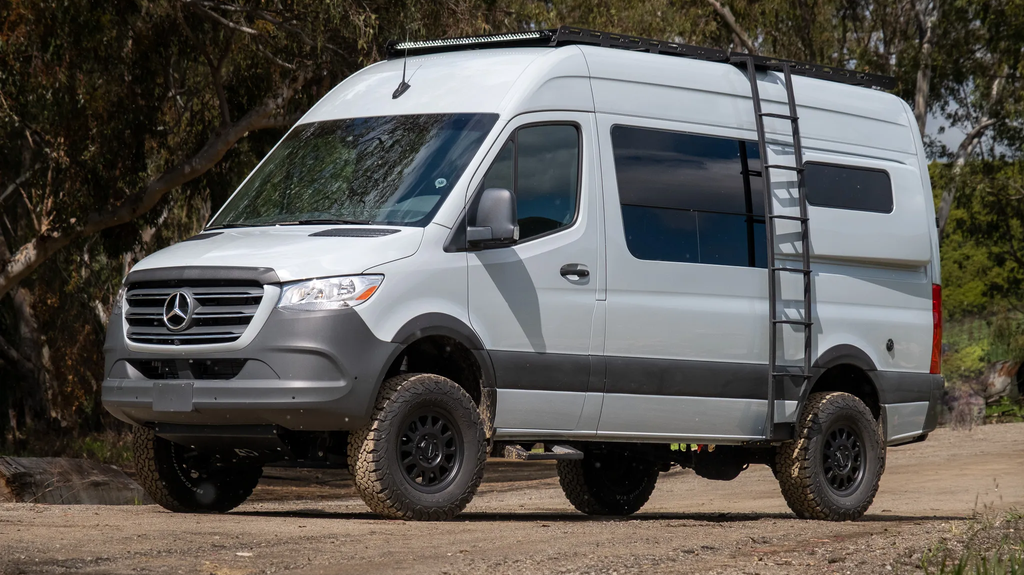

2022 Mercedes Sprinter 4×4
Custom Turnkey Campervan by VANNON • 43,000 Miles • Clean CA Title • Sleeps 4 • 5 Belted Seats
$99,000 OBO
Documented Build Cost: $175,692.83 • Over 43% Buyer Savings
Chassis & Powertrain
3.0L V6 Turbo Diesel BlueTEC
Low/High 4x4 • Agile RIP Suspension • Fox 2.0 • RennTech Tune
Off-Grid Electrical
300Ah LifeBlue Lithium • 2000W Inverter
260W Zamp Solar • Victron MPPT • 200A Alternator Charging
Four-Season Climate & Hydro
Webasto Diesel Heater • Duoetto Hot Water
23 Gal Fresh / 7 Gal Grey • Ext Heated Shower • 3M Thinsulate
Living, Dining & Sleeping
Sleeps 4 • 5 Belted Seats
Flarespace Pods • Roam Rest Bed • Café Dinette • Teak Galley
COMPREHENSIVE HIGHLIGHTS
Built for Real Off-Grid Exploration
Every system was hand-selected and professionally installed by industry specialists—combining Mercedes-Benz luxury with elite overlanding reliability.
Suspension, Wheels & Armor
Agile Offroad & VANNONCustom-tuned suspension geometry and heavy-duty chassis protection to navigate rough terrain with effortless composure.
- Agile RIP Suspension Kit: Bilstein struts with auxiliary coilovers & Fox 2.0 rear shocks
- 4,200 lb Heavy-Duty Leaf Springs: Specifically tuned for fully loaded conversion stability
- Method MR703 Bead Grip Wheels: 17"x7.5" Matte Black (Set of 5 with full-size spare)
- BFGoodrich All-Terrain KO2 Tires: 275/70R17 (33" severe-snow rated tires)
- Under-Chassis Spare Carrier: Modified factory basket houses full-size 33" spare under van
- Front Engine Skid Plate: Heavy-gauge reinforced aluminum protecting vital components
- Agile "No-Rub" Mini-Fenders: Textured black TPO liners for full 33" steering clearance

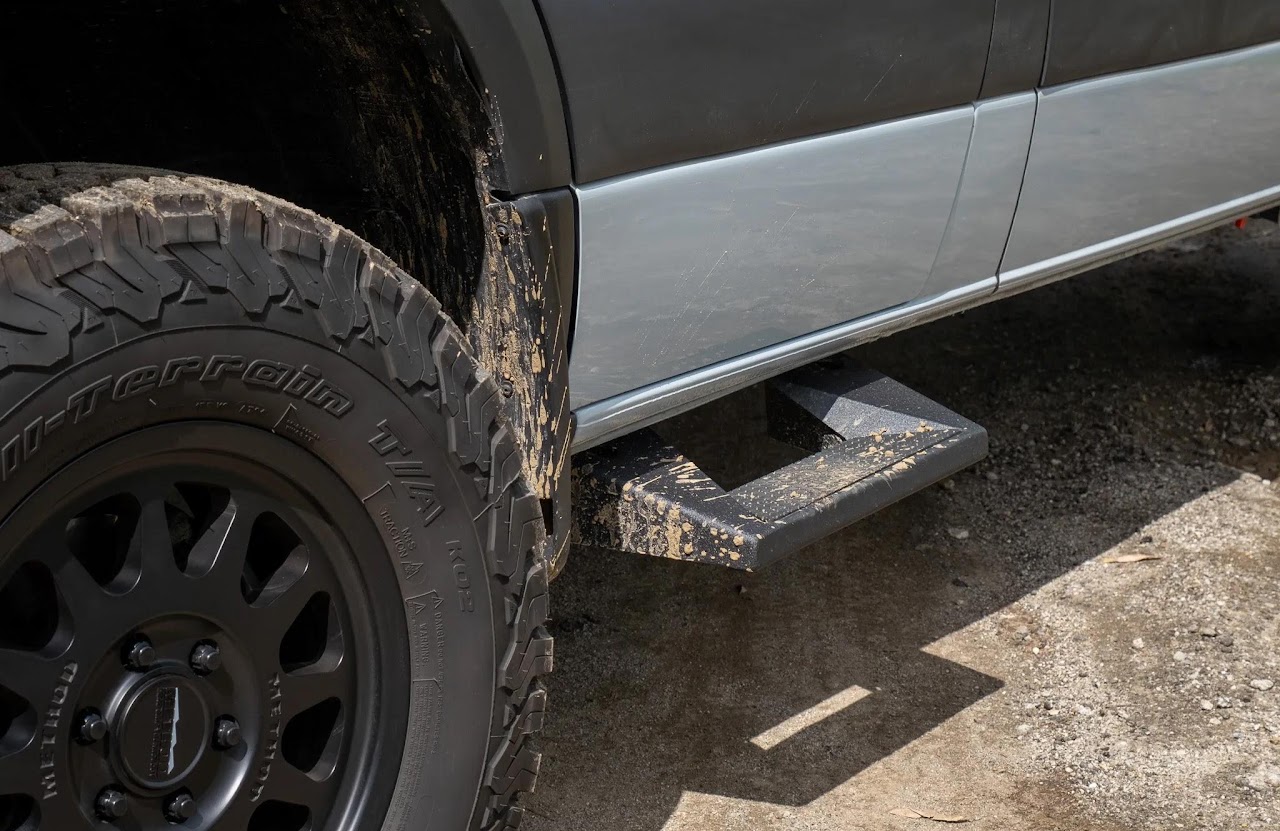

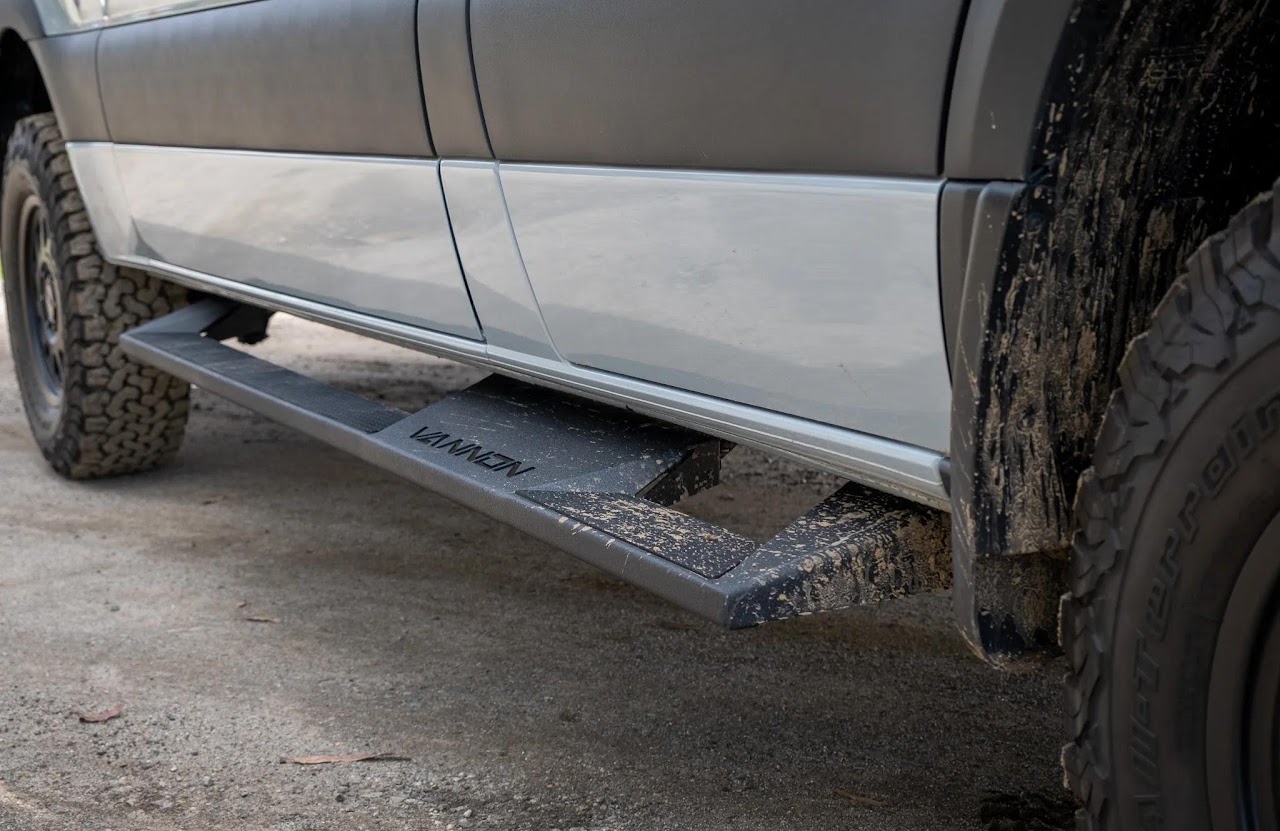

- VANNON Rock Sliders: Heavy-duty tubular running rails (driver step & passenger full rail)
- VANNON Rear Bumper Step: Full-width steel step with vulcanized anti-slip rubber tread

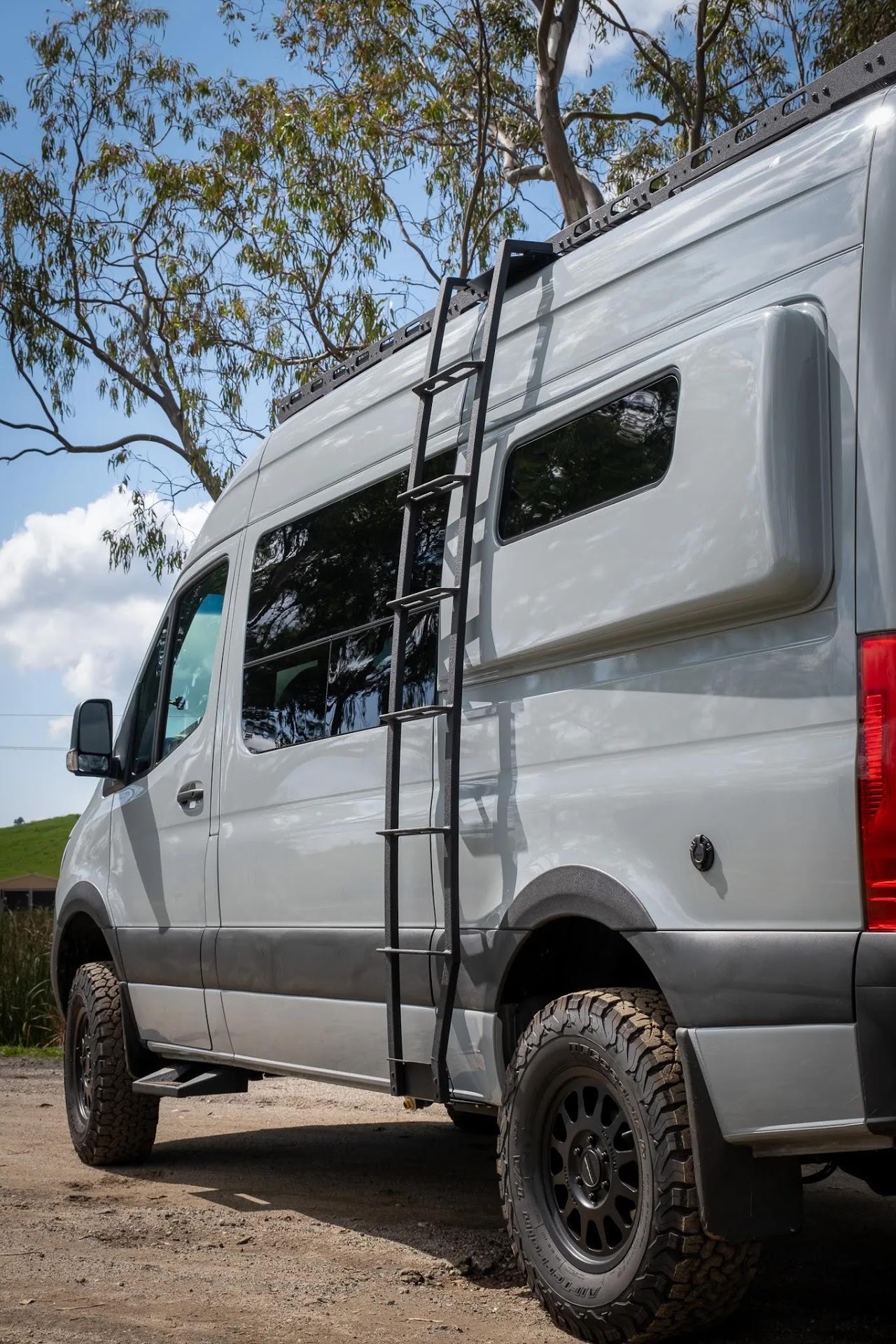

- VANNON Safari Roof Rack & Ladder: Full 144" aluminum rack with 48"x48" walk-on observation deck
- Auxiliary Lighting: 50" slim front LED light bar & dual rear Lazer Lamps Triple-R flood lights
Electrical, Solar & Climate
LifeBlue & Victron EnergyRobust, self-sustaining off-grid energy architecture allowing extended backcountry stays without plugging in.
- 300Ah LifeBlue Lithium Battery: LiFePO4 chemistry with internal Bluetooth smartphone BMS
- 2,000W Pure Sine Inverter/Charger: 12V DC to 120V AC with automatic shore power transfer
- 260W Rooftop Solar Array: Dual 130W Zamp monocrystalline panels mounted to roof rack
- Victron SmartSolar MPPT Controller: High-efficiency maximum power tracking with app monitoring
- Alternator High-Speed Charging: Sure Power 200A bi-directional separator charges while driving
- Webasto AirTop 2000 STC Heater: Diesel air heating tapped directly into main 24.5-gal fuel tank
- Webasto SmarTemp 2.0: Digital programmable thermostat with automatic temperature presets
- Duoetto MK2 Water Heater: Dual-voltage 10L (2.6 gal) hot water running on 12V DC or 120V AC
- 30-Gallon Water System: 23-gal fresh tank contoured over wheel well + 7-gal grey water tank

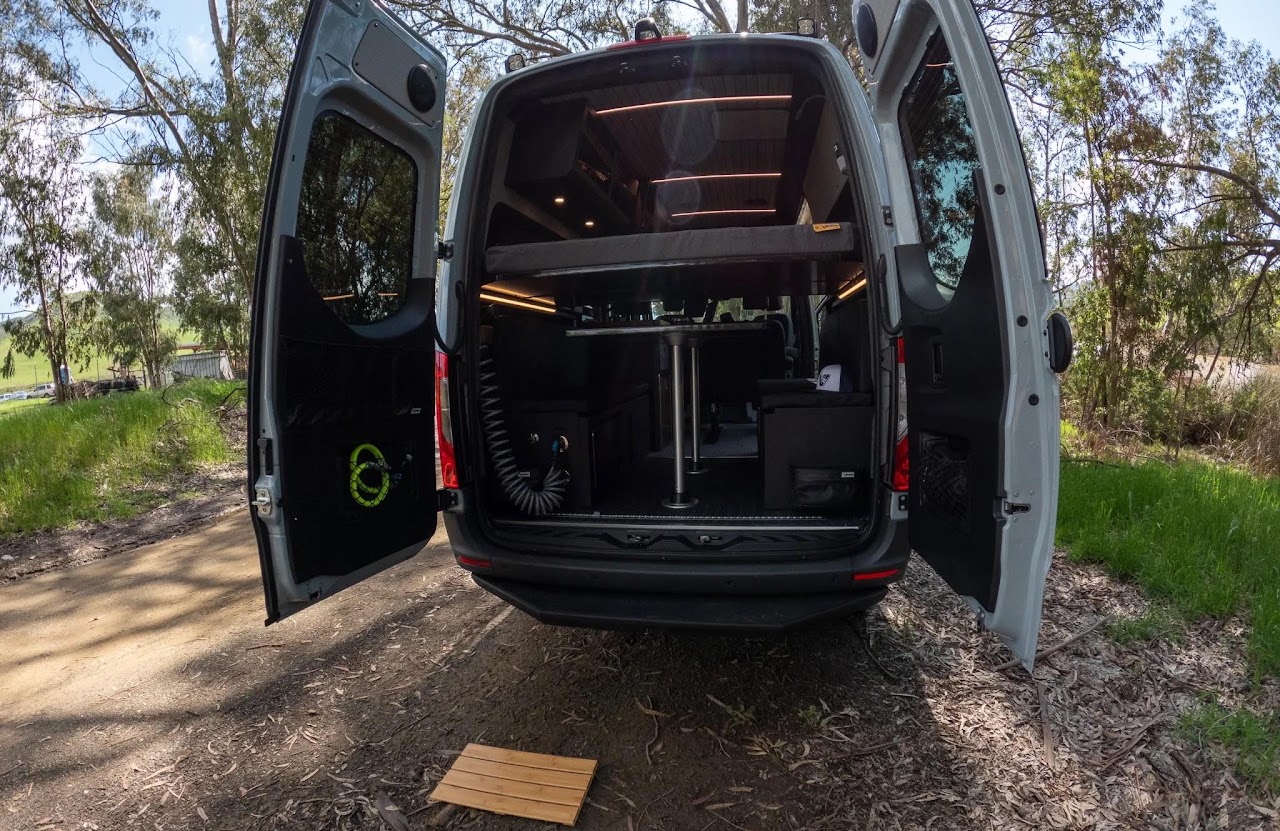

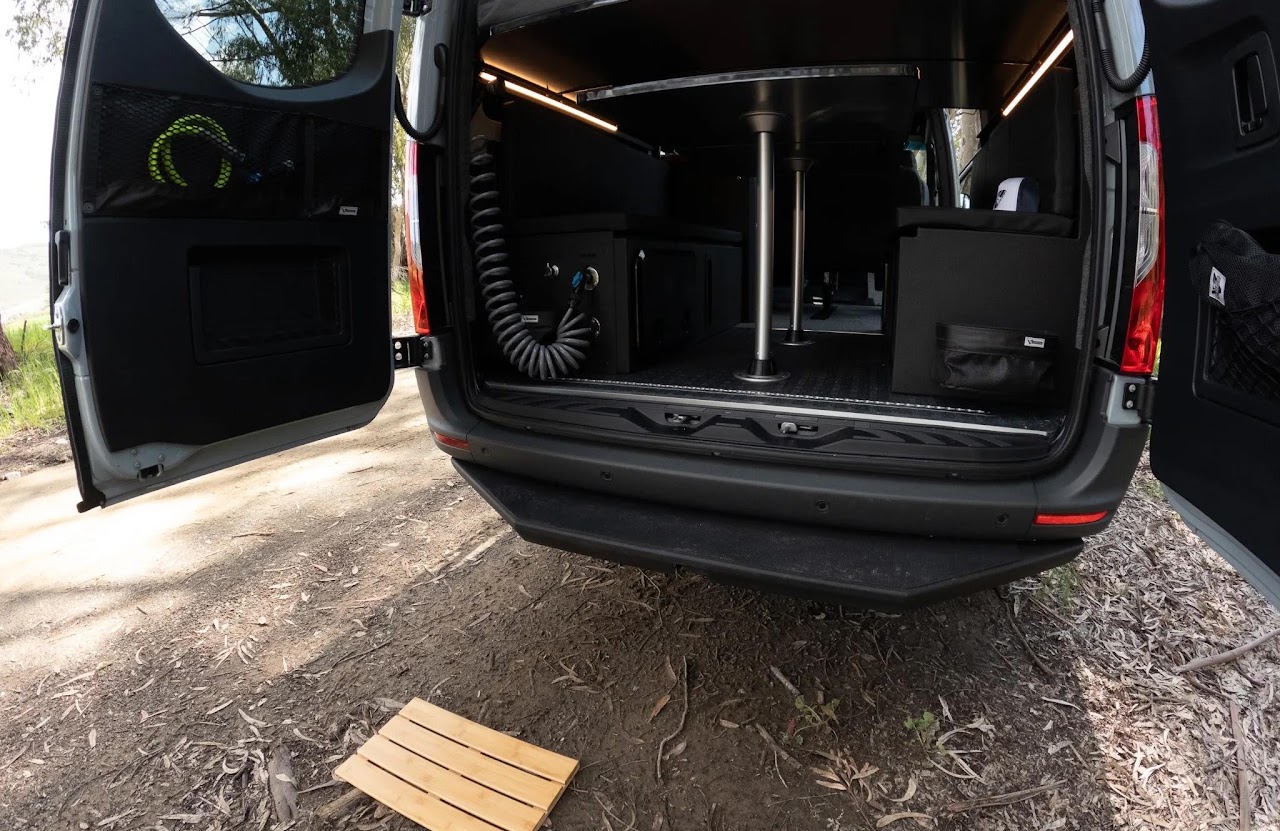

- Exterior Heated Shower: Rear door hot/cold spray port with full-width privacy curtain
- MaxxAir Deluxe 6200 Fan: 10-speed reversible ventilation fan with integrated rain dome shield
Living Space, Dinette & Sleeping
VANNON "Parker" LayoutThoughtful, modular cabinetry with handcrafted Portico Teak accents, flexible dining, and multi-bed sleeping for up to 4 adults.
- Flarespace Body Pods: Color-matched in Silver Grey (708); expands bed width to 78"+ for sideways sleeping

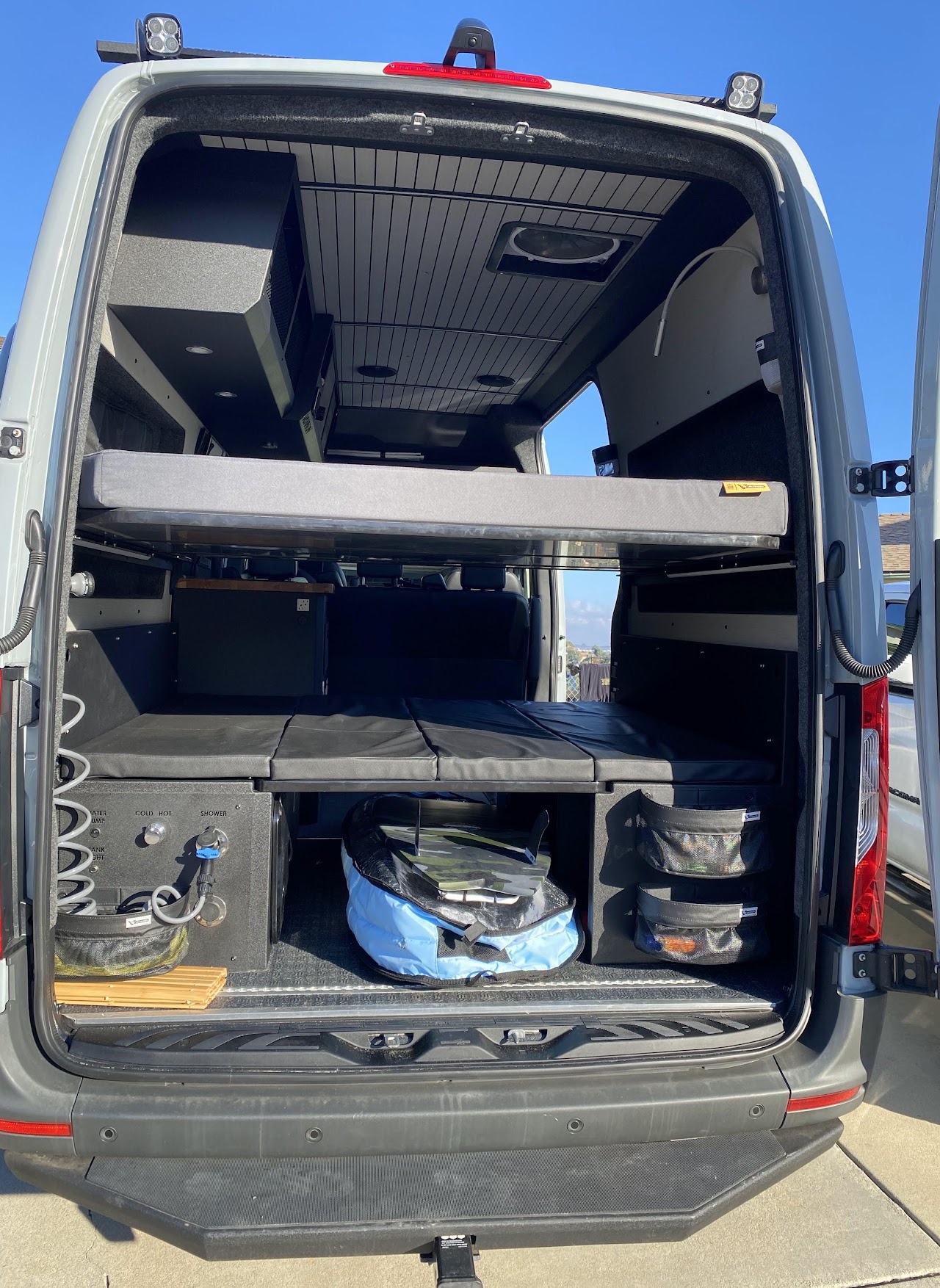

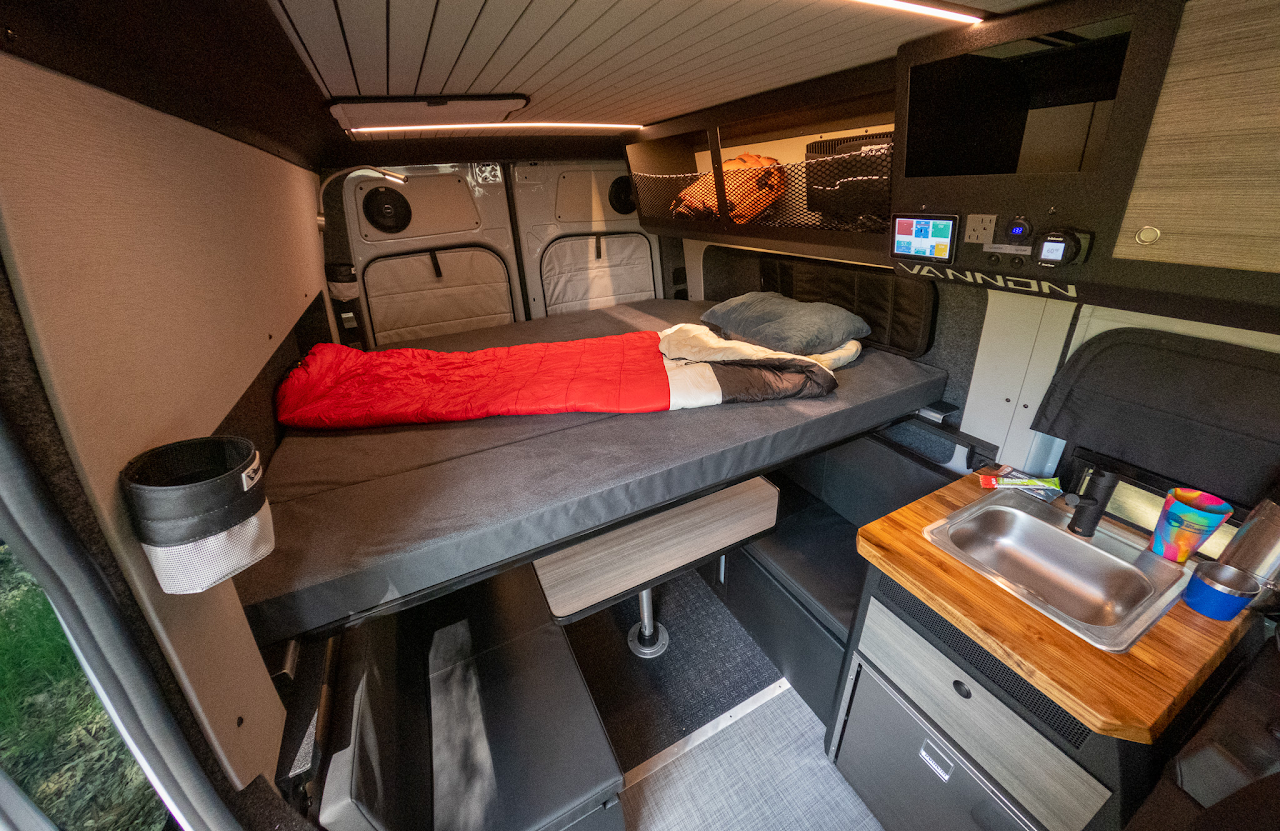

- Upper Master Bed Platform: Removable aluminum panels with Roam Rest custom 2-piece memory foam mattress
- Upper Bunk Safety Net: Heavy-duty retention cargo/baby net for gear or child safety

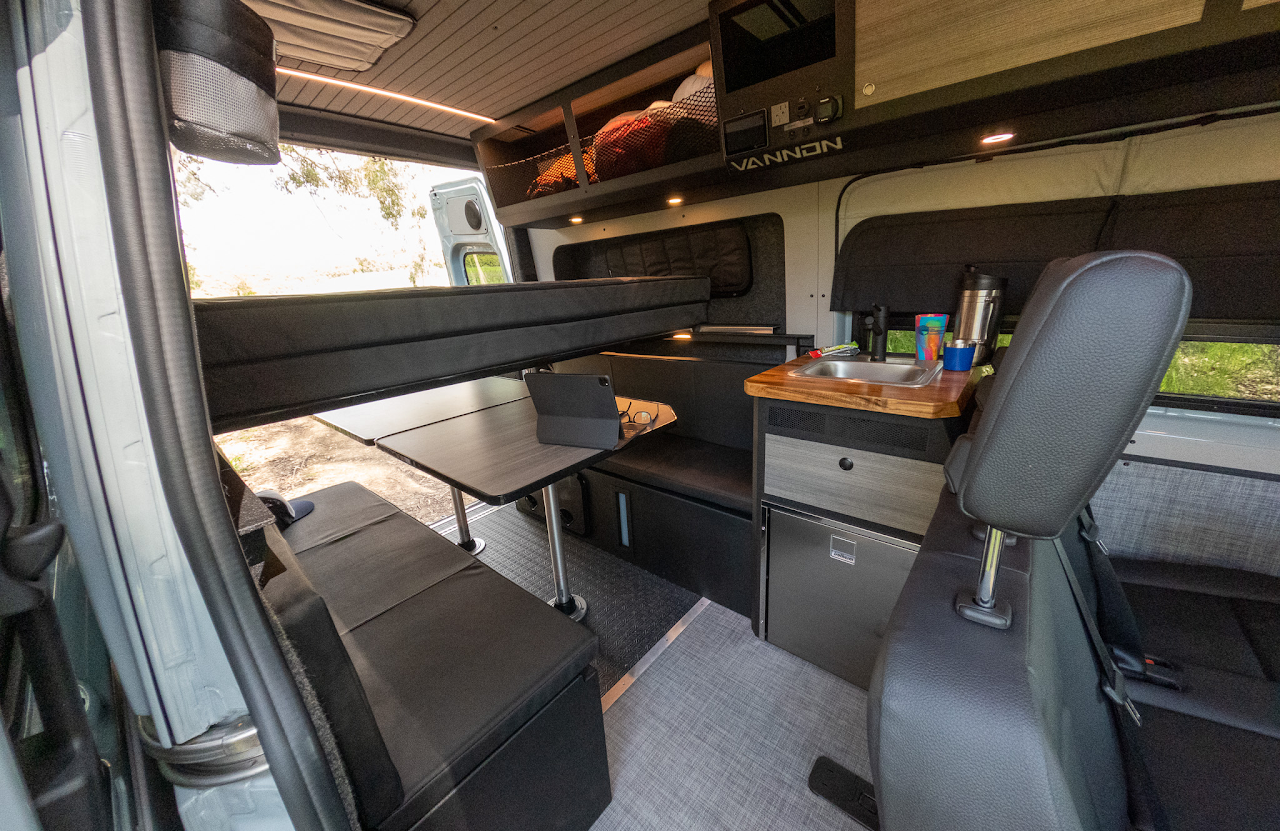

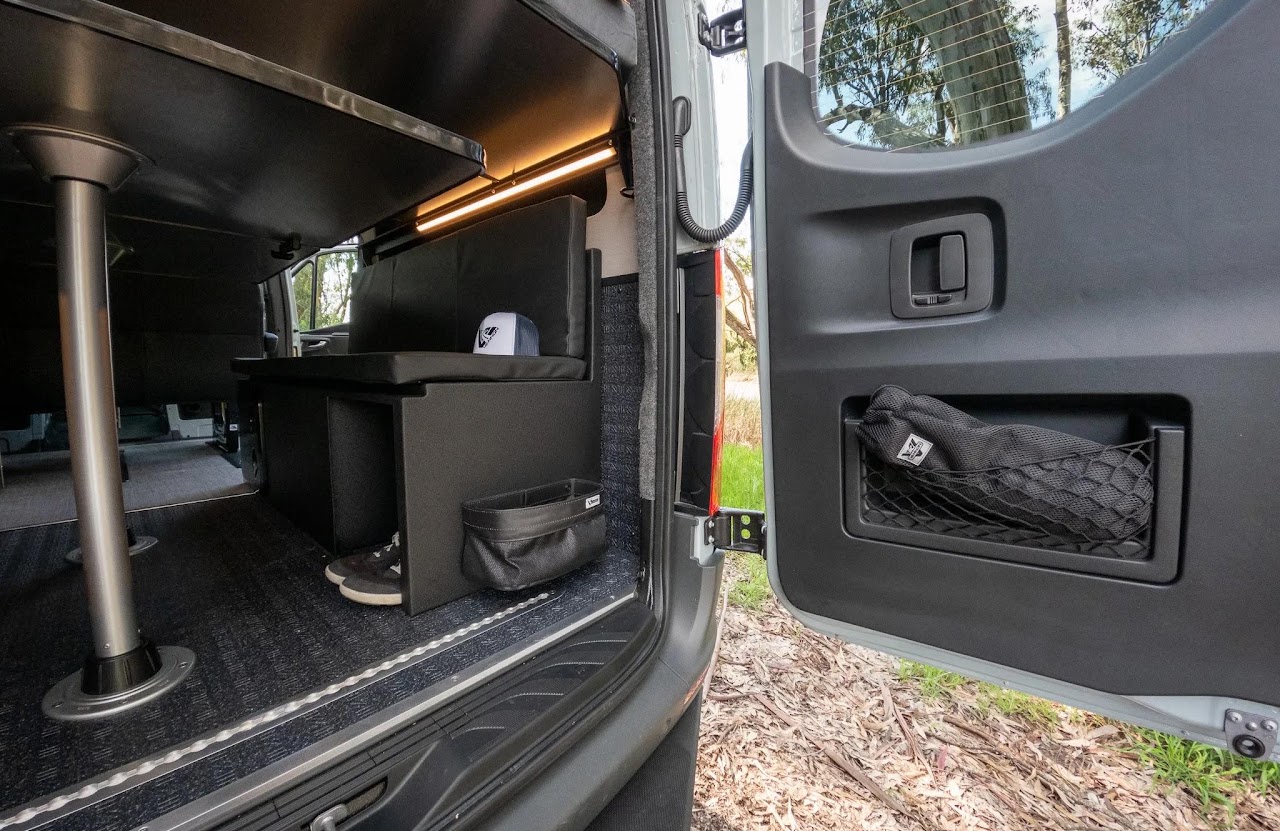

- Lower Convertible Dinette Lounge: Dual 60" opposing café bench seats convert to a second double bed
- Custom Prodigy Cushions: 5-piece 2" dual-density foam cushions in Black Prodigy with commercial zippers
- 5 Belted Seats Total: 2 front captain swivels + Mercedes OEM 3-passenger 2nd-row bench seat

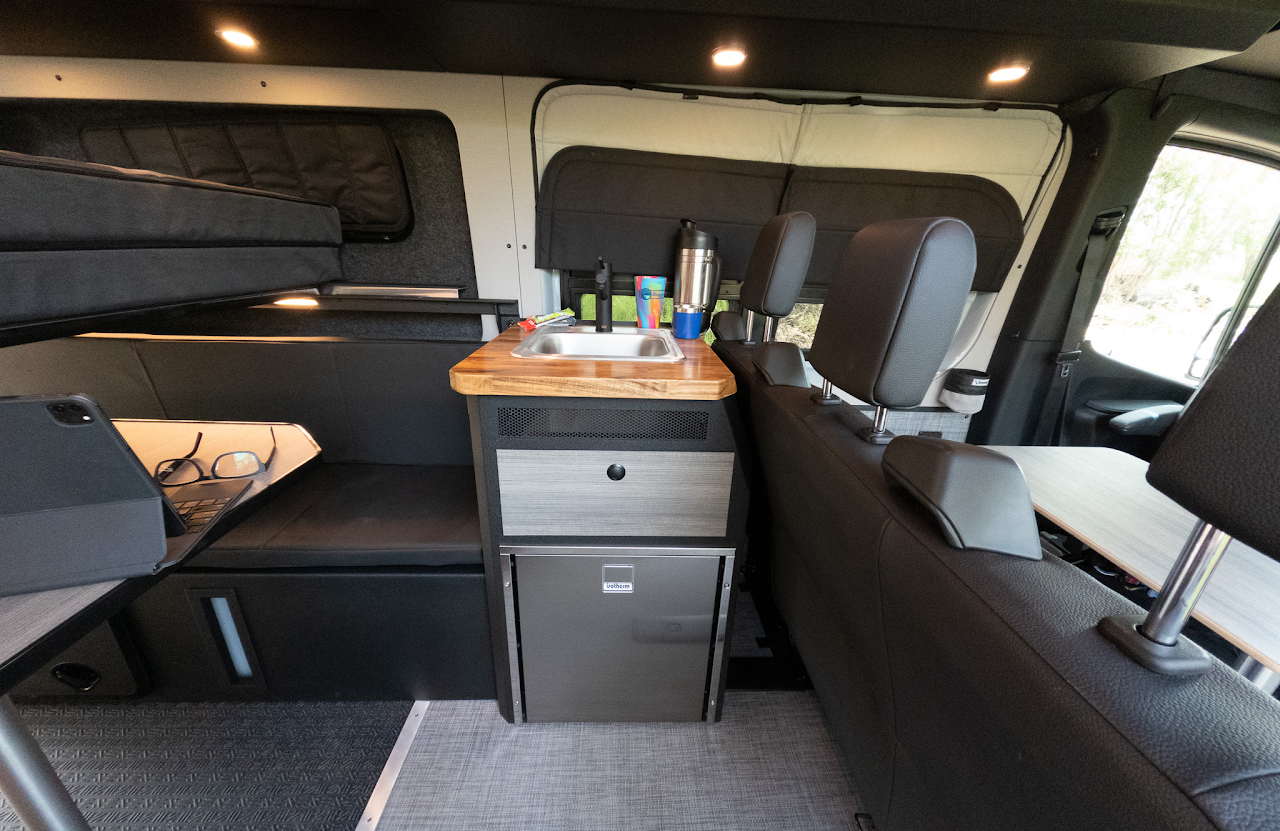

- Portico Teak Kitchen Galley: 26" aluminum unit with WilsonArt Portico Teak butcher block top & deep sink
- Isotherm Cruise 65 Refrigerator: Clean Touch stainless steel pull-out drawer fridge/freezer (12V DC)

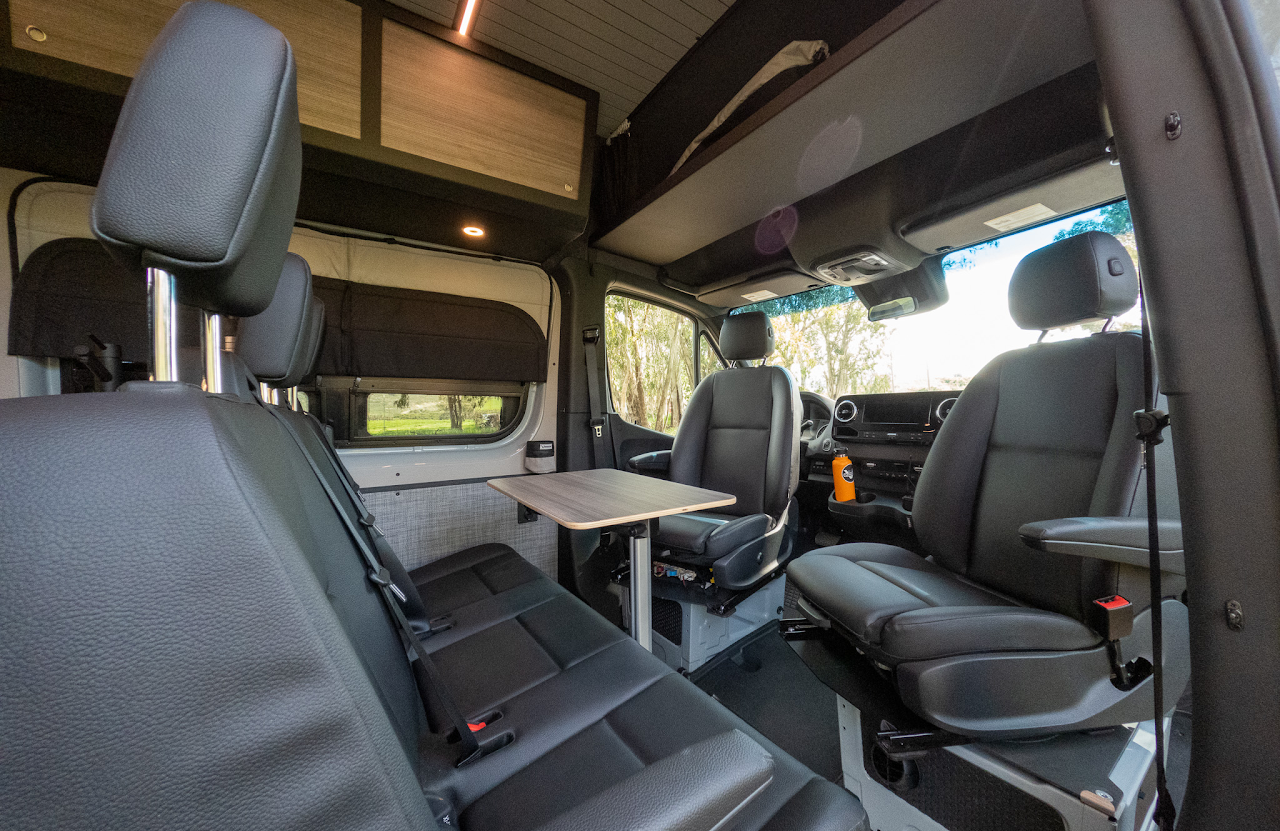

- Lagun Articulating Dining Table: 360-degree rotating arm with 16" x 24" high-pressure laminate tabletop
- VANNON Overhead Storage: 59" front sliding locker, 50" rear netted upper cabinet & cab shelf
- Acoustic & Thermal Envelope: 3M Thinsulate insulation, 100% butyl sound deadening & HydroTurf grooved ceiling
Cockpit Tech, Audio & Performance
Mercedes-Benz, Miramar Audio & RennTechThe cockpit features Mercedes' most loaded tech packages, paired with audiophile acoustic tuning and electronic performance upgrades.
- MBUX 10.25" Multimedia Touchscreen: High-resolution navigation, "Hey Mercedes" voice control & Apple CarPlay
- 360-Degree Surround Camera (JB6): Bird's-eye parking cameras and Parktronic front/rear proximity sensors
- Power Heated Memory Seats (X68): Full multi-stage electric memory captain chairs for driver & passenger
- Electric Parking Brake (B25): Dash-mounted push button eliminating bulky floor handbrake levers

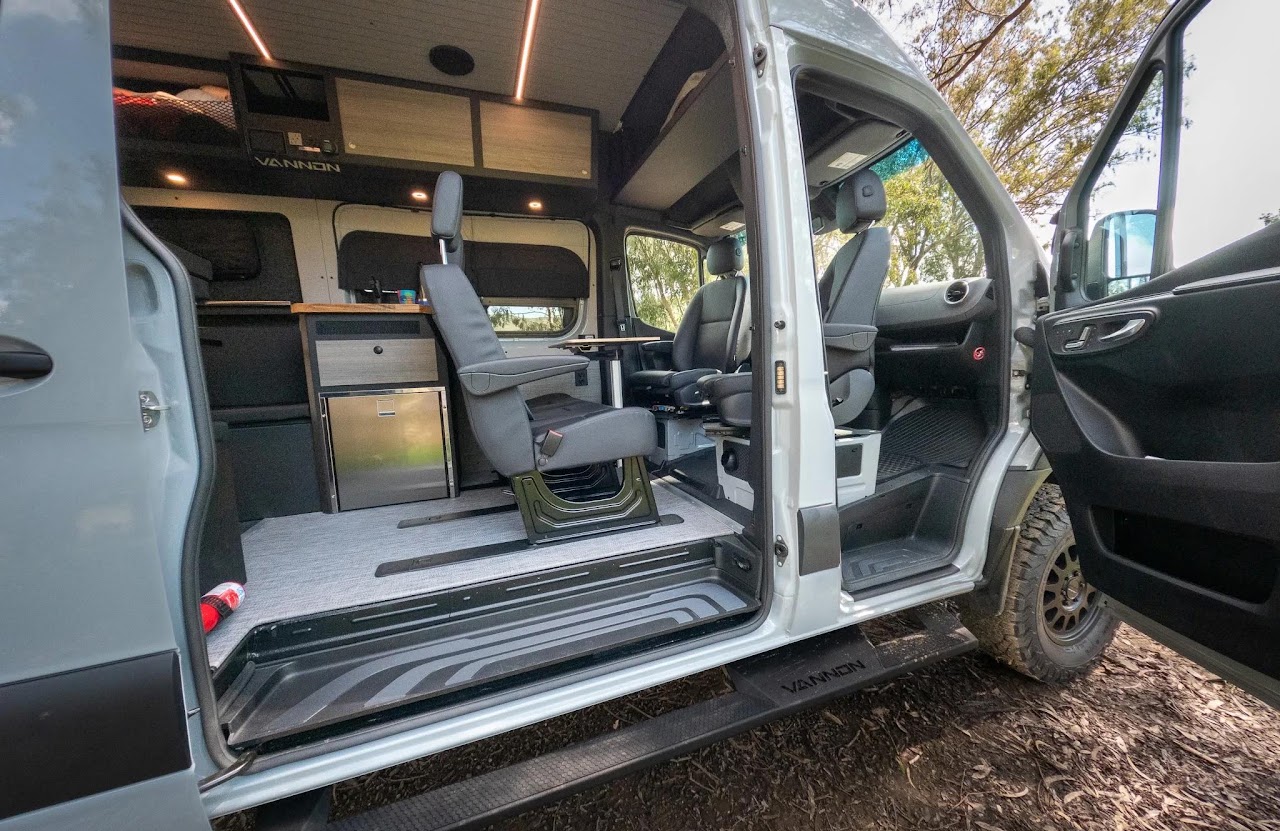

- Alpine Mechanisms Seat Swivels: Low-profile heavy-duty swivels allowing front seats to rotate into the lounge
- Driver Assistance Suite: Active Lane Keeping, Blind Spot Assist, Attention Assist, Crosswind Assist & Heated Windshield
- AudioControl 6-Channel DSP Amp: Audiophile digital sound processor matrix amplifier with parametric time alignment
- Rockford Fosgate Prime 500.1 Amp: Dedicated Class-D mono bass amplifier (500W RMS clean power)
- High-End Speaker Array: Alpine Type-S 6.5" components & coaxials (6 speakers) + Kicker rear fills
- Kicker 10" CompRT Subwoofer: Shallow-mount high-output sub in a custom sealed enclosure
- RennTech ECU Tune & Pedal Box: Substantial horsepower/torque gains and zero turbo-diesel throttle lag
HIGH-RESOLUTION PHOTO GALLERY
Explore the Van in Detail
Click any image to launch the full-screen interactive lightbox with zoom, high-resolution viewing, and keyboard navigation.
DETAILED DOCUMENTATION
Dive Deeper into the Build
Explore full component-by-component breakdowns, part numbers, and complete financial investment records.
MERCEDES FACTORY BUILD
OEM Factory Options & Specs
Explore all Mercedes-Benz factory equipment from the original window sticker: 4x4 low/high transfer case, Premium Plus 10.25" MBUX, Comfort Plus heated power seats, 360° camera, and tow package.
CUSTOM CONVERSION
Aftermarket Upgrades & Build Sheet
Comprehensive itemization of all aftermarket systems: Agile Offroad RIP suspension, Method MR703 wheels, VANNON cabinetry, 300Ah LifeBlue lithium power, Webasto heater, and Miramar audio.
FINANCIAL TRANSPARENCY
Cost Data & Build Investment
View the full $175,692.83 investment breakdown cross-referenced with all 5 source vendor invoices, showing an immediate buyer discount of over $76,000 below replacement cost.
Mercedes-Benz OEM Factory Features
Comprehensive build specifications and original factory options ordered on this 2022 Sprinter 2500 4×4 Cargo Van (VIN: W1W4EBVY4NT097128).
Factory Package
CODE X30
Low & High Range 4×4 Package
Mercedes-Benz Factory OEM
Selectable 4-wheel drive system featuring a dedicated low-range transfer case for steep grades and technical off-road conditions.
- ZG3: 4x4 High Range with selectable Low Range Transfer Case
- T75: Door-mounted assist handles for driver & co-driver
- ZH4: Downhill Speed Regulation (DSR) for low-speed descents
- AR2: 3.92 Axle Ratio optimized for 4x4 capability
Factory Package
CODE C03
Premium Plus Tech Package
Mercedes-Benz Factory OEM
Top-tier infotainment, voice navigation, wireless smartphone integration, and factory acoustic sound damping.
- E4M: MBUX Multimedia System with 10.25" High-Res Touchscreen
- E1B: Wireless smartphone charging tray
- XM4: ACOUSTIC PACKAGE (factory cabin sound deadening)
- JA9: Traffic Sign Assist speed-limit recognition
- EY2 & EX9: Live Traffic integration & 3 years of free map updates
Factory Package
CODE X68
Comfort Plus Seating Package
Mercedes-Benz Factory OEM
Full power memory electric adjustments and heated seats for both driver and co-driver captain chairs.
- SF1: Driver seat electrically adjustable with memory
- SF2: Co-driver seat electrically adjustable with memory
- H16: Multi-stage heated driver seat
- H15: Multi-stage heated co-driver seat
Factory Package
CODE C01
Driver Convenience Package
Mercedes-Benz Factory OEM
Advanced active blind spot safety sensors, attention alert, power folding mirrors, and cockpit storage.
- JA7: Blind Spot Assist with rear warning
- JW8: Attention Assist driver fatigue monitor
- F64: Electrically folding heated exterior side mirrors
- FZ9: Two additional factory master key fobs (4 total)
- FJ1 & FJ5: Hinged lids for center & dashboard storage bins
- E46: 12V DC power outlet at driver seat base
Factory Package
CODE CA2
Active Safety & Steering Package
Mercedes-Benz Factory OEM
Active lane management, highline color instrument cluster, and heated wet wiper spray system.
- JB4: Active Lane Keeping Assist
- CL3: Leather-wrapped multi-function steering wheel
- FM3: Wet Wiper System (integrated blade washer jets)
- JK5: Instrument cluster with highline color display
Factory Package
CODE C00
Basic Comfort Package
Mercedes-Benz Factory OEM
Ergonomic upgrades including lumbar adjustments, comfort headrests, and padded door armrests.
- LC4: Comfort overhead control console with reading lights
- SE4 & SE5: Adjustable lumbar support for driver & passenger
- SK0 & SK1: Comfort adjustable headrests
- S28: Padded armrests on driver and co-driver door panels
Standalone Option
CODE JB6
Parking Package w/ 360° Camera
Mercedes-Benz Factory OEM
Full bird's-eye 360-degree surround camera view displayed on the 10.25" MBUX screen, paired with Parktronic sonar sensors.
- Surround 360-degree top-down stitched camera feed
- Front, rear, and curb proximity guidance guidelines
- Parktronic ultrasonic bumper sensors
Standalone Option
CODE B25
Electric Parking Brake
Mercedes-Benz Factory OEM
Replaces the bulky manual handbrake lever with a dash-mounted electronic switch, enabling clean 360° seat swivel rotation without obstruction.
- Electronic push-button actuator with auto-hold
- Crucial for low-profile driver seat swivel rotation
- Leaves cabin walkway completely clear
Standalone Option
CODE D03 + D13
Factory High Roof & Roof Rails
Mercedes-Benz Factory OEM
Provides 76" of interior standing headroom, paired with factory full-length C-channel aluminum roof mounting rails.
- D03: High Roof specification ($3,000)
- D13: Factory aerodynamic roof mounting rails ($310)
- Secure anchoring foundation for VANNON safari rack
Standalone Option
CODE F49 + H22
Electrically Heated Windshield & Windows
Mercedes-Benz Factory OEM
Micro-filament electrically heated windshield for rapid winter defrosting, heated rear door defroster, and deep factory privacy tint.
- F49: Electrically heated front windshield glass ($225)
- H22: Defroster heating elements for rear door glass ($261)
- W70 & W61: Windows in rear cargo doors with deep factory privacy tint
- W54: Rear cargo doors opening 270 degrees ($372)
Standalone Option
CODE EE3 + KL1
115V AC Socket, PSM & Aux Fuel Tap
Mercedes-Benz Factory OEM
Essential factory preps for campervan conversions, including in-tank fuel feeding for diesel heaters and body builder CAN-bus module.
- EE3: 115V AC cockpit utility wall socket ($129)
- ED5: Parametric Special Module (PSM) body-builder gateway ($327)
- KL1: Auxiliary fuel sending unit (in-tank feed port for Webasto)
- ES2 & ES5: 12V DC power sockets in dashboard and cargo rear ($180)
Standalone Option
CODE Q24 + E40
5,000 LB Towing Crossmember & Wiring
Mercedes-Benz Factory OEM
Heavy-duty NAFTA 5,000 lb rated trailer crossmember, 7-pin trailer electrical harness, and rear step bumper integration.
- Q24: Trailer crossmember with 5,000 lb rating ($152)
- E40: Trailer hitch 7-pin wiring harness
- QA9: Rear step wall coupling integration ($104)
Standard Spec
MG5 / G42
3.0L V6 Turbo Diesel & 7G-TRONIC
Mercedes-Benz Factory OEM
Proven Mercedes-Benz OM642 3.0-liter V6 Turbo Diesel engine paired with 7-speed automatic transmission.
- MG5: 3.0L V6 Turbo Diesel BlueTEC (188 HP / 325 lb-ft torque)
- G42: 7G-TRONIC 7-speed automatic transmission
- M46: High-output 14V / 220A heavy-duty alternator
- ED4: 12V 92Ah 850A AGM heavy-duty starter battery
- KB7: 24.5-gallon fuel tank with red misfueling cap
Standard Spec
SAFETY
Factory Safety & Chassis Reinforcements
Mercedes-Benz Factory OEM
Comprehensive passive and active safety systems, longitudinal reinforcements, and 9,050 lb GVWR rating.
- BA3 & BH1: Brake Assist Plus & Hold Function
- JA8 & E07: Crosswind Assist & Hill Start Assist
- XL2: 4,100 kg (9,050 lb) GVWR chassis weight variant
- Q11: Longitudinal member body reinforcements
- Full 6-airbag system (front, thorax-pelvis side, and window curtains)
Aftermarket Upgrades & Conversion
Premium off-road suspension, custom VANNON "Parker" interior conversion, lithium electrical system, and performance modifications.
Suspension
AGILE RIP KIT
Agile Offroad Ride Improvement Package (RIP)
Agile Offroad / VANNON Installed
Complete suspension overhaul custom-valved specifically for the 4,200 lb rear axle weight of a fully outfitted Sprinter camper van.
- Front Bilstein struts paired with custom auxiliary coilovers & spacers
- Agile custom rear leaf spring pack tuned for 4,200 lb load
- Fox 2.0 Performance Series rear shocks with protective boots
- Extended stainless steel brake lines & axle lugs
- Post-suspension 4-wheel laser alignment
Wheels & Tires
METHOD + BFG
Method MR703 Bead Grip Wheels & BFG KO2 (Set of 5)
Agile Offroad (Invoice #INV17055)
Set of 5 lightweight Method Race Wheels MR703 (17x7.5, +50mm offset, 6x130, Matte Black) with patented Bead Grip technology and 33" all-terrain tires.
- 5x Method MR703 17" Matte Black Bead Grip Wheels
- 5x BFGoodrich All-Terrain T/A KO2 Tires (LT275/70R17)
- 5x Autel universal snap-in TPMS sensors
- 24x Black Zinc 14x1.5mm 33mm cone seat lug bolts
- Telescoping lug wrench set (17/19/21/23mm)
Chassis & Spare
AOR098
Agile Oversized Spare Tire Basket Carrier
Agile Offroad (Invoice #INV17055)
Custom drop bracket kit and factory basket modification allowing a full-size 275/70R17 BFG KO2 spare to be securely carried under the frame.
- Keeps rear doors unobstructed (no clumsy rear door tire carrier needed)
- Retains optimal rear weight balance and departure angle
- Factory basket extension and safety lock integration
Armor & Protection
AGILE ARMOR
Agile Skid Plate, No-Rub Fenders & Armor
Agile Offroad / VANNON
Essential trail armor preventing rock damage to steering and engine components, plus high-clearance fender modifications for 33" tires.
- Agile Offroad reinforced aluminum engine & steering skid plate
- Agile "No Rub" front mini-fenders (Textured Black TPO) for tire clearance
- 4-piece textured black wheel arch fender armor kit
- Heavy-duty black-out undercoating inside rear wheel wells
Performance
RENNTECH + HHT
RennTech ECU Engine Tune & Pedal Control
Owl Vans (Order #20589)
RennTech Hand-Held Tuner (HHT) providing substantial horsepower and low-end torque gains, combined with instant electronic throttle response.
- RennTech Sprinter Engine Tune HHT for 2022 3.0L V6 Turbo Diesel
- Pedal Control 2.0 / Sprint Booster (Pedal Box 3704) controller
- Eliminates turbo-diesel drive-by-wire throttle lag
- Easy OBD-II switching between factory and performance maps
Exterior
VANNON RACK
VANNON Safari Roof Rack, Decking & Ladder
VANNON, Inc. Custom Build
Contoured 144" High Roof aluminum safari rack with custom reduced crossbars, walk-on observation decking, and side access ladder.
- Full 144" High Roof aluminum roof rack contoured to van roofline
- 48" x 48" powder-coated perforated walk-on aluminum decking platform
- VANNON driver-side high-roof aluminum climbing ladder
- Integrated front light bar mount and rear scene light brackets
Exterior Armor
VANNON ARMOR
VANNON Rock Slider Running Rails & Rear Step
VANNON, Inc. Custom Build
Heavy-duty tubular rocker panel protection doubling as access steps, plus a rear bumper step with non-slip traction tread.
- Driver-side single drop access step
- Passenger-side full-length tubular running rail covering cab & sliding doors
- Heavy-duty rear bumper step with vulcanized rubber traction surface
- Aero hood spoiler (`TWNS-023`) protecting leading edge
Exterior Lighting
LAZER + Z-BAR
50" Front LED Light Bar & Rear Lazer Lamps
VANNON, Inc. Custom Build
High-output auxiliary lighting package for long-range trail navigation, campsite illumination, and reverse visibility.
- 50" Slimline Single-Row LED light bar flush mounted to front rack fairing
- Dual Lazer Lamps Triple-R high-performance rear auxiliary spotlights
- Cockpit illuminated dash rocker switches & fused heavy-gauge relays
Body & Sleeping
FLARESPACE 144
Flarespace Body Flares (Color-Matched)
Flarespace / Painted by Paint Saint
Increases interior width to over 78", allowing adults to sleep sideways (east-west), saving over 25 square feet of main living area.
- Driver-side XL deep flare with opening CR Laurence (CRL) screened slider
- Passenger-side standard aerodynamic flare
- Professionally painted and color-matched in OEM Silver Grey (`708`)
- Flarespace interior molded trim rings, fully insulated and upholstered
Electrical System
LIFEBLUE + VICTRON
300Ah LifeBlue Lithium & 2000W Inverter
VANNON, Inc. Custom Build
Commercial-grade off-grid power plant featuring a smart lithium iron phosphate deep cycle battery and 2000W pure sine wave inverter/charger.
- 1x LifeBlue 300Ah LiFePO4 Smart Battery with Bluetooth monitoring
- 2000W Pure Sine Inverter/Charger (12V to 120VAC) with automatic transfer switch
- Sure Power 200A bi-directional separator (alternator charging while driving)
- Spartan Power 200A ANL fuse kit, 2-gauge 600V marine-grade wiring
- Multiple 110V AC duplex outlets and USB-C fast charge ports
Solar Power
ZAMP + VICTRON MPPT
260W Zamp Solar Array & Victron MPPT
VANNON, Inc. Custom Build
Roof-mounted monocrystalline solar array paired with the industry-standard Victron Energy SmartSolar charge controller.
- 2x Zamp Solar 130W monocrystalline solar panels (260W total)
- Victron Energy SmartSolar MPPT Charge Controller with Bluetooth app
- Victron digital battery monitor with live state-of-charge display
HVAC & Heating
WEBASTO 2000 STC
Webasto AirTop 2000 STC Diesel Air Heater
VANNON, Inc. Custom Build
High-altitude capable diesel forced-air heater connected directly to the van's main 24.5-gallon fuel tank with digital thermostat control.
- Tapped directly into OEM auxiliary fuel sender port (`KL1`)
- Webasto SmarTemp 2.0 digital programmable thermostat controller
- Quiet operation, efficient low-amperage 12V DC power consumption
- Ducted floor-level heat distribution across main cabin
Plumbing & Hot Water
DUOETTO MK2
Duoetto MK2 Dual-Voltage Hot Water Heater
VANNON, Inc. Custom Build
Dual-voltage 10-liter (2.6 gallon) rapid water heater operating on both 12V DC off-grid battery power and 120V AC shore power.
- Dual 12V DC and 120V AC electric heating elements
- Custom aluminum overflow containment drain pan plumbed through floor
- Supplies on-demand hot water to galley sink and rear exterior shower
Plumbing
HYDRO SYSTEM
30-Gallon Complete Hydro Water System
VANNON, Inc. Custom Build
Comprehensive on-board plumbing system with wheel-well fresh tank, exterior grey tank, and outdoor heated shower.
- 23-Gallon internal fresh water tank contoured over wheel well
- 7-Gallon grey water tank with external frame mount and dump valve
- 12V high-flow water diaphragm pump, inline filter & check valve
- Deep galley sink with fixed high-arc modern faucet
- Rear exterior hot/cold shower spray port & privacy shower curtain
Kitchenette
ISOTHERM 65
Teak Galley & Isotherm 65 Drawer Fridge
VANNON, Inc. Custom Build
Custom 26" aluminum-framed galley with solid WilsonArt Portico Teak countertop and stainless steel pull-out drawer refrigerator/freezer.
- Isotherm Cruise Drawer 65 stainless steel 12V DC fridge/freezer
- WilsonArt Portico Teak durable solid surface butcher block top
- Soft-close kitchen utility drawer and under-sink storage
Living & Bedding
PARKER LAYOUT
Dual Platform Bed & Convertible Dinette Lounge
VANNON, Inc. Custom Build
Double-decker sleeping architecture featuring a removable aluminum upper platform and convertible lower café bench seats.
- Upper Platform: 2 large aluminum panels with HydroTurf surface
- Custom Roam Rest 2-piece layered foam mattress with dark grey cover
- Upper bunk gear / child safety retention net ("Baby Net")
- Lower Dinette: Dual 60" opposing café bench seats converting to double bed
- 5-piece 2" dual-density cushions in Black Prodigy fabric with heavy-duty zippers
- Integrated lower storage cavity sized for portable toilet
Seating & Dining
ALPINE SWIVELS
Alpine Swivel Seats & 3-Passenger OEM Bench
Agile Offroad & VANNON
Low-profile heavy-duty seat swivels for both front chairs, 360° Lagun dining table, and Mercedes OEM 3-person 2nd row bench seat (5 belted seats total).
- 2x Alpine Mechanisms low-profile heavy-duty swivels (Driver & Passenger)
- Driver swivel engineered with clearance for electric parking brake
- Lagun 360° articulated table arm system with 16" x 24" tabletop
- Mercedes OEM 3-passenger second-row bench seat integrated into floor tracks
Audiophile Sound
AUDIOCONTROL DSP
Miramar Car Audio System & Subwoofer
Miramar Car Audio (Invoice #3395)
Premium sound system featuring an AudioControl 6-channel DSP matrix amplifier, dedicated 500W mono subwoofer amp, and Alpine Type-S speakers.
- AudioControl 6-channel DSP matrix amplifier with active EQ tuning
- Rockford Fosgate Prime 500.1 Class-D mono bass subwoofer amplifier
- Alpine Type-S 6.5" 2-way front component speakers with dash tweeters
- 2 pairs (4 speakers) of Alpine Type-S 6.5" coaxial surround speakers
- 1 pair of Kicker 6.5" coaxial fill speakers
- Kicker 10" CompRT shallow subwoofer in sealed enclosure
- Dynamat Xtreme sound deadening on front doors and acoustic foam fast rings
Insulation & Trim
THINSULATE + L-TRACK
3M Thinsulate Insulation & Flooring
VANNON, Inc. Custom Build
Complete four-season thermal and acoustic envelope with marine-grade woven vinyl and commercial garage rubber flooring.
- 3M Thinsulate (SM600L) thermal insulation throughout walls, doors, ceiling
- Full butyl sound deadening sheets across 100% of body panels
- 1/2" Baltic birch subfloor with Infinity Gunmetal marine woven vinyl
- LonSeal LonRidge textured non-slip black rubber in rear garage
- AMF / MacTrac 8-foot aluminum recessed L-Track cargo tie-down rails
- Precision CNC wall panels upholstered in Morburn Surf Warm Grey
- HydroTurf grooved 2" ceiling slats with upholstered crown molding
Accessories
MAGNETIC COVERS
Full Thermal Magnetic Window Cover Set
VANNON, Inc. Custom Build
Complete set of custom tailored blackout magnetic insulated window covers (Black exterior / Grey interior) for privacy and climate control.
- Front windshield folding insulated cover
- Driver & passenger front cab door window covers
- Crew sliding door & side window covers
- Rear cargo door window covers (pair)
- Flarespace AW1033 slider window insulated cover
- MaxxAir roof fan insulated blackout vent pillow cover
- Cab privacy curtain on overhead track, fire extinguisher & CO detector
Documented Service & Maintenance Records
Complete, verified maintenance records for the 2022 Mercedes-Benz Sprinter 2500 4×4. Exclusively serviced and maintained by Vista Sprinter Service & Repair in Vista, CA.
$4,241.85
Total Documented Care
Across 5 detailed work orders
38,651 mi
7-Speed Transmission Service
Full 4x4 fluid flush & filter kit
Fresh Brakes
Front & Rear Replaced
Rotors, pads & wear sensors
Service B (x2)
Major Factory Intervals
Mann filters & MB229.52 oil
Maintenance History Log
5 Invoices • $4,241.85| Date | Odometer | Document Ref | Scope of Service | Category | Total Paid | Status |
|---|---|---|---|---|---|---|
| 2024-12-06 | 22,838 mi | Invoice #14590 | Service B (Oil, Filters, Fuel Filter) + Turbo Resonator Line O-Rings & Seal Replacement | Scheduled & Turbo | $984.67 | Paid |
| 2025-03-24 | — | Invoice #14316 / Rec #14456 | Front Brake Rotors & Pads Replacement | Brakes | $704.93 | Paid |
| 2025-09-22 | — | Invoice #15769 / Rec #15994 | Service A (Routine Maintenance & Multi-Point Vehicle Inspection) | Scheduled A | $421.24 | Paid |
| 2026-06-26 | 38,651 mi | Invoice #18117 / Rec #18467 | Major Service B, 7-Speed 4x4 Transmission Service (Flush/Filter), Air Charge Intake Pipe R&R, Multi-Point Inspection | Major Service & Trans | $1,808.13 | Paid |
| 2026-07-17 | 40,532 mi | Invoice #18287 / Rec #18648 | Rear Brake Pads & Wear Sensors R&R (W907 4WD) | Brakes | $322.88 | Paid |
ITEMIZED INVOICES
Detailed Work Orders & Receipts
Complete labor, OEM parts, and service scope directly from certified shop work orders.
Invoice #14590
Service B
Turbo Line
📅 December 6, 2024
📍 22,838 Miles
$984.67
Paid
Labor: $501.15
Parts: $432.66
Shop Supplies: $14.01
Sales Tax (8.25%): $36.85
Provider: Vista Sprinter Service & Repair
1. Service B, W907, 2.1
Subtotal: $656.56
- Labor ($321.75): Complete engine oil and filter replacement, engine air filter replacement, cabin air filter replacement, service interval & air contamination reset.
- Engine Oil ($140.84): 12.3 units German OEM Premium 5W-30 (Mercedes-Benz MB229.52 specification).
- Oil Filter ($22.91): Mann Filter HU7010Z.
- Air Filter ($29.50): W906 high-capacity engine intake air filter.
- Cabin Filter ($38.65): Active charcoal cabin climate filter.
- Fuel Filter ($102.91): Mann Filter WK820/18 diesel fuel filter.
2. Turbo Resonator Line O-Rings & Seal Replacement
Subtotal: $277.25
- Labor ($179.40): Turbo resonator line leak diagnosis, disassembly, and seal replacement.
- Turbo Silencer O-Ring ($22.00): Big O-Ring on turbo silencer (W906 3.0L).
- Silencer Seal Ring ($59.00): Turbo silencer seal ring (W906 3.0L).
- Outlet O-Ring ($6.85): O-Ring on turbocharger outlet.
- Shop Supplies ($10.00): CRC Brakleen Pro Series cleaning and degreasing.
Invoice #14316 / Receipt #14456
Brakes & Rotors
📅 March 24, 2025
Visa Debit Auth #012401
$704.93
Paid
Subtotal: $665.00
Sales Tax (8.25%): $29.95
Payment: Paid in Full
Provider: Vista Sprinter Service & Repair
Front Brake Rotors & Pads Replacement
Total: $704.93
- Brake Rotors & Pads Service: Complete removal and replacement of front brake rotors and heavy-duty brake pads for optimal braking performance on 4x4 campervan chassis.
- System Inspection: Caliper slide pins lubricated, brake lines inspected, bedding check performed.
Invoice #15769 / Receipt #15994
Service A
📅 September 22, 2025
Visa Debit Auth #024168
$421.24
Paid
Subtotal: $401.17
Sales Tax (8.25%): $20.07
Payment: Paid in Full
Provider: Vista Sprinter Service & Repair
Mercedes-Benz Standard Service A Interval
Total: $421.24
- Engine Oil & Filter Service: Full synthetic diesel oil change with OEM filter replacement.
- Multi-Point Routine Inspection: Fluid levels checked and corrected (coolant, brake fluid, windshield washer), tire condition and pressure verified, horn, wipers, and exterior lighting checked.
- Maintenance Computer: Service interval counter reset via Mercedes-Benz diagnostic protocol.
Invoice #18117 / Receipt #18467
Service B
Transmission 4x4
Air Charge Pipe
📅 June 26, 2026
📍 38,651 Miles
$1,808.13
Paid
Labor: $973.05
Parts: $805.89
Supplies: $19.59
Discount: -$58.50
Sales Tax (8.25%): $68.10
Advisor: Alexander Dff
1. Multi-Point Vehicle Diagnostic & Safety Scan
Complimentary ($0.00)
- Full Mercedes-Benz electronic systems OBD diagnostic scan, suspension component check, underbody armor inspection, and safety verification.
2. Major Service B, W907, 3.0L V6 Turbo Diesel
Subtotal: $683.00
- Labor ($312.00): Engine oil and filter change, engine air filter replacement, cabin pollen filter replacement, fuel filter replacement, reset service interval.
- Engine Oil ($156.00): 13.0 units German OEM Premium 5W-30 (Mercedes-Benz MB229.52 specification).
- Oil Filter Kit ($18.00): OEM / Mann Filter HU821X.
- Engine Air Filter ($29.00): High-flow air filter for W906/W907.
- Cabin Filter Charcoal ($39.00): OEM Mercedes-Benz (Part #910 830 12 00).
- Fuel Filter ($129.00): OEM German Mann Filter WK820/15 diesel fuel filter.
3. 3.0L Turbo Air Charge Intake Pipe R&R
Subtotal: $229.00
- Charge Air Pipe / Hose ($229.00): Brand-new OEM Charge Air Pipe / Intake Hose assembly for 3.0L V6.
- Labor: Installation labor waived by shop (line-item discount of -$58.50 applied).
4. 7-Speed 4x4 Automatic Transmission Service
Subtotal: $808.44
- Labor ($602.55): 3.09 shop hours @ $195.00/hr. Complete transmission fluid exchange, full system flush, torque converter drain, pan removal, cleaning of pan magnets, and filter replacement.
- Transmission Fluid ($125.94): Genuine Mercedes-Benz MB236.15 low-viscosity 7-speed automatic transmission fluid.
- Transmission Filter Kit ($79.95): 7-Speed transmission internal filter, pan gasket, and sealing hardware.
Invoice #18287 / Receipt #18648
Rear Brakes
📅 July 17, 2026
📍 40,532 Miles
$322.88
Paid
Labor: $195.00
Parts: $113.50
Shop Supplies: $4.63
Sales Tax (8.25%): $9.75
Advisor: Alexander Dff
Rear Brake Pads & Wear Sensors R&R (W907 4WD)
Subtotal: $308.50
- Labor ($195.00): Remove and replace rear brake pad assembly, inspect rotors, clean calipers, test electronic brake actuators.
- Brake Pad Set Rear ($105.00): Heavy-duty rear brake pad set specifically for W907 4WD Sprinters.
- Brake Pad Wear Sensor Long ($8.50): New electronic wear sensor (W906-W907).
Vehicle Build & Investment Breakdown
Itemized financial records compiled from original manufacturer window sticker, fabricator agreements, and aftermarket vendor invoices.
Invoice & Vendor Investment Summary
Total: $175,692.83| Phase / Vendor | Invoice / PO # | Date | Category | Total Amount |
|---|---|---|---|---|
| Mercedes-Benz USA (Anaheim) | PO #7274057992 | Aug 16, 2022 | Base 2022 Sprinter 4x4 & OEM Factory Options | $69,847.00 |
| VANNON, Inc. (San Luis Obispo) | Build Sheet 9.26.22 | Sep 26, 2022 | Custom "Parker" Camper Conversion (Parts & Labor) | $93,638.94 |
| Agile Offroad (Santee, CA) | #INV17055 | Sep 13, 2022 | Method Wheels, BFG Tires, No-Rub Fenders & Swivels | $6,260.09 |
| Miramar Car Audio (San Diego) | #3395 | Sep 13, 2022 | AudioControl DSP Amp, Alpine Speakers, Kicker Sub | $4,036.47 |
| Owl Vans | #20589 | Sep 14, 2022 | RennTech ECU Engine Tune HHT & Pedal Control 2.0 | $1,910.33 |
| TOTAL COMBINED INVESTMENT | $175,692.83 | |||
VANNON Conversion Breakdown (San Luis Obispo, CA)
$93,638.94| Category | Components & Scope | Parts | Labor | Total Subtotal |
|---|---|---|---|---|
| Exterior Systems | Agile 4x4 RIP suspension, full roof rack, decking, ladder, rock sliders, rear step, light bar, Lazer flood lights, windows | $13,940.00 | $4,085.00 | $18,025.00 |
| Electrical Power | 300Ah LifeBlue LiFePO4 battery, 2000W pure sine inverter/charger, 260W Zamp solar, Victron MPPT & monitor, Sure Power separator | $5,170.00 | $2,300.00 | $7,470.00 |
| Electrical Accessories | LED lighting circuits, reading lights, MaxxAir fan, Isotherm 65 stainless fridge, 110V/USB-C outlets, garage lights & switches | $3,270.00 | $1,800.00 | $5,070.00 |
| HVAC Heating | Webasto AirTop 2000 STC diesel heater w/ SmarTemp 2.0 controller, Duoetto MK2 dual-voltage 10L water heater & drain pan | $2,350.00 | $900.00 | $3,250.00 |
| Hydro Plumbing | 23 gal wheel-well fresh tank, 7 gal grey tank, 12V pump, filter, sink & faucet, rear exterior shower & curtain | $2,700.00 | $1,550.00 | $4,250.00 |
| Insulation & Flares | Flarespace 144 pods (paint-matched Silver Grey), 3M Thinsulate, 100% sound deadening, upholstered panels, ceiling, MacTrac L-track | $11,110.00 | $7,575.00 | $18,685.00 |
| Furniture & Living | Aluminum upper bed platform, Roam Rest custom mattress, 60" café dinette lounge w/ 5-piece Prodigy cushions, teak galley, Lagun table | $8,960.00 | $2,520.00 | $11,480.00 |
| Extras & Seating | OEM 3-passenger bench seat, full magnetic thermal window cover set, cab partition curtain, safety equipment | $4,208.00 | $1,020.00 | $5,228.00 |
| Base Parts & Labor Subtotal | $51,708.00 | $22,150.00 | $73,858.00 | |
| Sales Tax (San Luis Obispo, 8.75%) | $4,524.45 | |||
| VANNON Custom Project Management Fee (20%) | $15,606.49 | |||
| VANNON BUILD TOTAL | $93,638.94 | |||
Mercedes-Benz Factory OEM Window Sticker (MSRP)
$69,847.00| Code | Option / Package Description | MSRP Price |
|---|---|---|
| M2CA4X | 2022 Sprinter 2500 Cargo Van 4x4 (144" Wheelbase) Base Vehicle | $44,920.00 |
| X30 | Low and High Range 4x4 Package with Transfer Case & Assist Handles | $8,500.00 |
| D03 | High Roof Specification | $3,000.00 |
| X68 | Comfort Plus Package (Heated Driver & Co-Driver Power Memory Seats) | $1,986.00 |
| C03 | Premium Plus Package (10.25" MBUX, Wireless Charger, Acoustic Package) | $1,852.00 |
| JB6 | Parking Package with 360-Degree Surround Camera | $800.00 |
| C01 | Driver Convenience Package (Blind Spot Assist, Power Folding Mirrors) | $785.00 |
| 708 | Silver Grey Exterior Paint | $697.00 |
| CA2 | Active Lane Keeping Assist, Leather Steering Wheel & Wet Wiper | $624.00 |
| V43 | Heavy-Duty Wood Floor with 6 D-Rings | $436.00 |
| W54 | Rear Cargo Doors, 270-Degree Opening | $372.00 |
| ED5 | Parametric Special Module (PSM) | $327.00 |
| C00 / X67 | Basic Comfort Package ($310) & Chrome Grille Package ($300) | $610.00 |
| D13 / B25 | Roof Rails ($310) & Electric Parking Brake ($288) | $598.00 |
| Various | Heated Windshield ($225), 115V Socket ($129), Trailer Crossmember ($152), Satellite Radio ($263), Rain Sensor ($109), Outlets & Accessories | $1,835.00 |
| DEST | Factory Destination & Delivery Charge | $1,695.00 |
| TOTAL MERCEDES-BENZ MSRP | $69,847.00 | |
